Coil and Thru Tubing Tools
Motors, mills, coil connectors and supporting components for tubing cleanouts and extended-reach millouts.
Motors, mills, jars and connectors
Dan’s specializes in milling tools. This is the deepest part of the inventory.

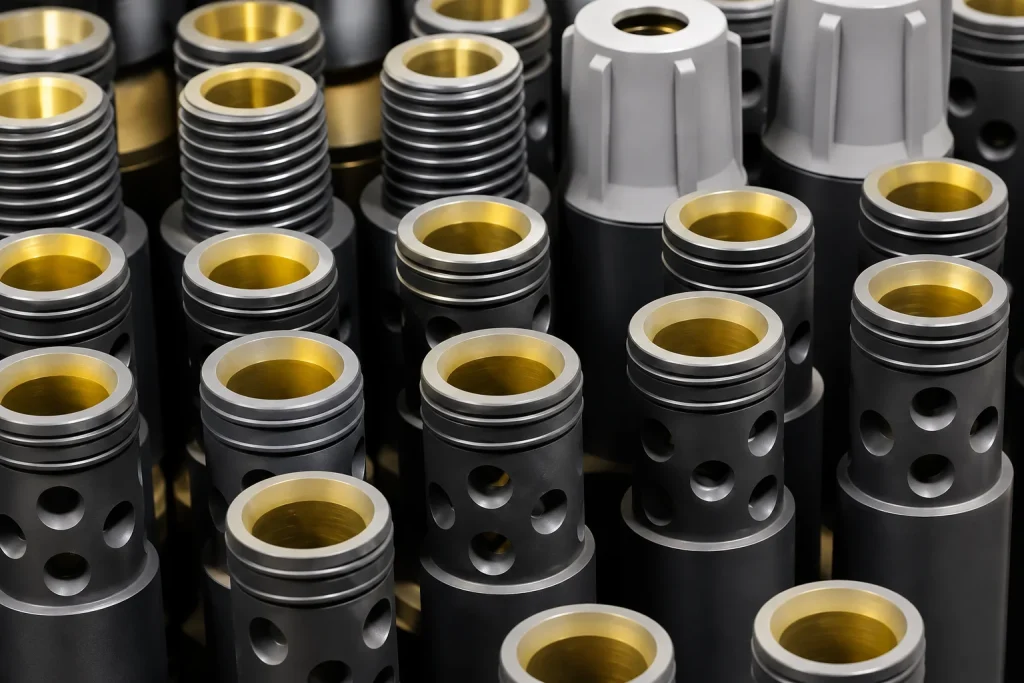

Coil Connectors
High torsional and tensile strength, dual seal, available for all sizes of coil and vibration-tool compatible.
- Internal Dimple Coil Connector
- External Slip-Type Coil Connector

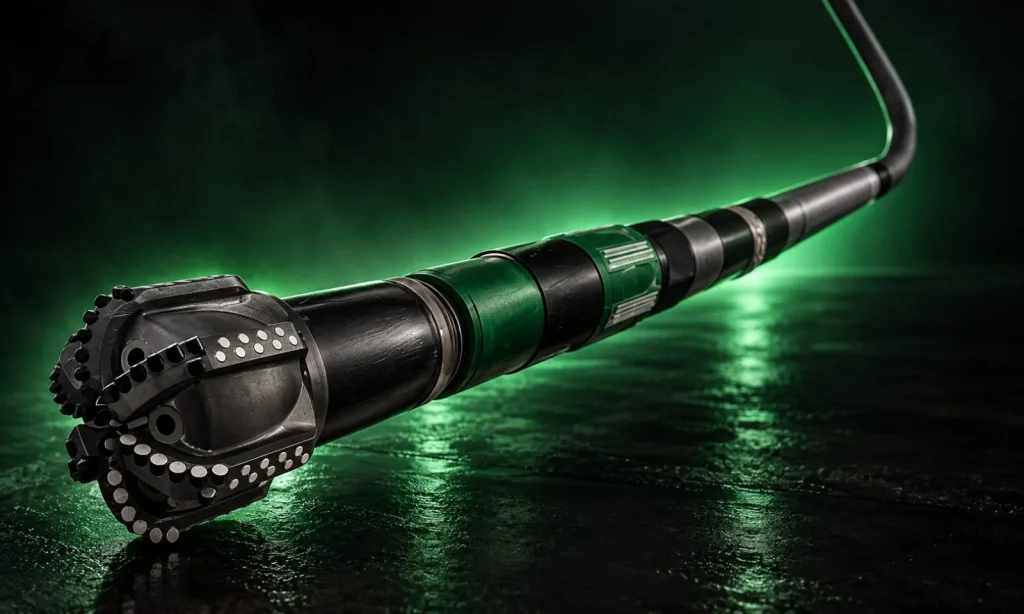

Motors, Mills & Bits
A motor line built for milling. The all-metal variant runs where elastomers will not.
- Dan's Torque Series Motor
- Dan's Torque Series All-Metal Motor
- Mills
- Bits
Jars & Disconnects
For jarring and for getting off the string cleanly when something goes wrong.
- Hydraulic Jars — Lee
- Hydraulic Jars — Bowen

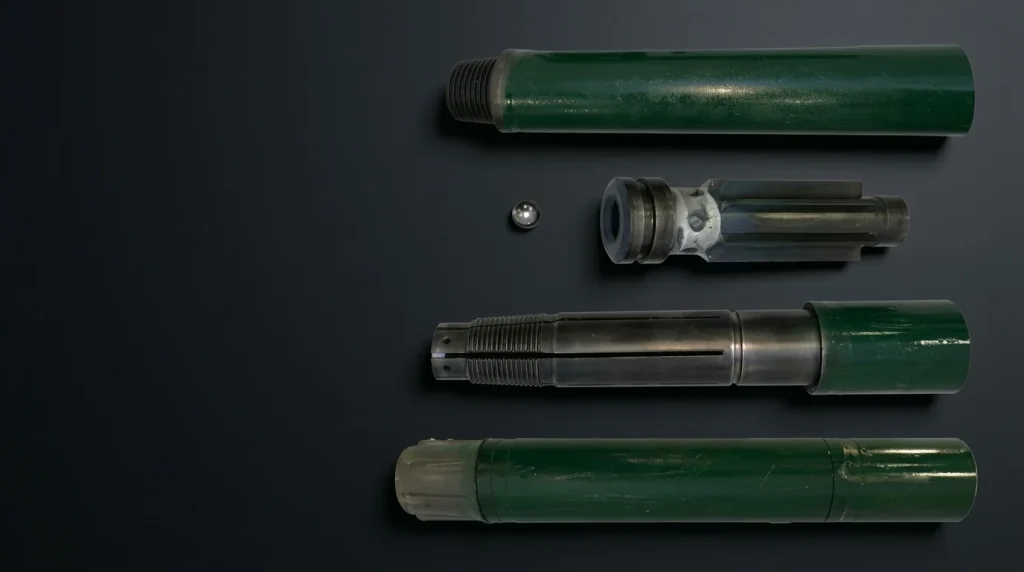

- Venturi Hydraulic Disconnect
- Venturi Float Sub

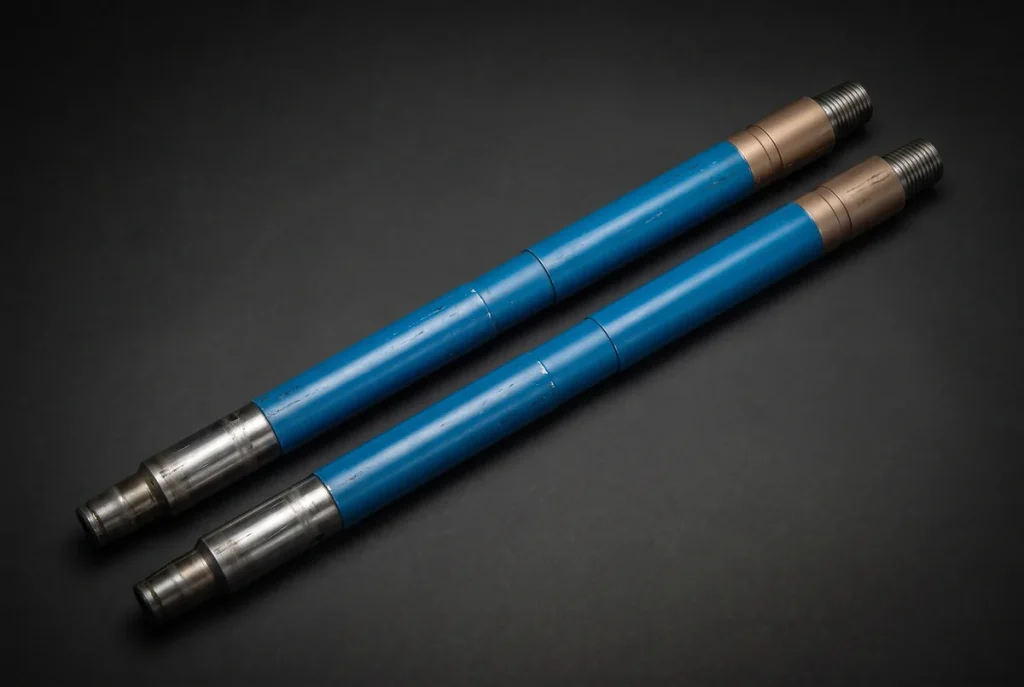

Extended Reach
Friction reduction and reach tools for long laterals.
- NOV Agitator
- Terra Pulse Agitator
- All Metal Extended Reach Tool
- Talon Extender
- Dyno Max Regulator Sub
Connector Options
| Connector | Type | Size range |
|---|---|---|
| Internal Coil Connector | Internal grip | 25.4 – 73 mm |
| External Coil Connector | External grip | 25.4 – 73 mm |
| Spoolable Coil Connector | Spoolable | 25.4 – 73 mm |
| Hydraulic Dimple Kit | Field make-up | Matched to connector |
The connector is the one point the whole BHA hangs from: if it lets go, a drillout becomes a fishing job. Coil OD, wall thickness and whether it needs to spool decide which one.
Motor Selection
| Component | Range | Notes |
|---|---|---|
| Mud Motors | 1-11/16″ – 4″ | Full size range held |
| Motor Head Assemblies | Matched to motor | Complete or component |
| High-Flow Milling Tools | 73 mm | To 1000 L/min |
| ERT / Agitator | Multiple options | Extended reach |
We hold the motor head assemblies, bi-directional jars, shock tools, agitators, rotating and fixed nozzles and coil tubing test packers that go around the motor, so the assembly is built as a whole.
The Thru Tubing Catalogue
Coil outside diameters, wall thicknesses, yield and burst figures, motor performance curves and mill dressings are all in the Thru Tubing Catalogue.

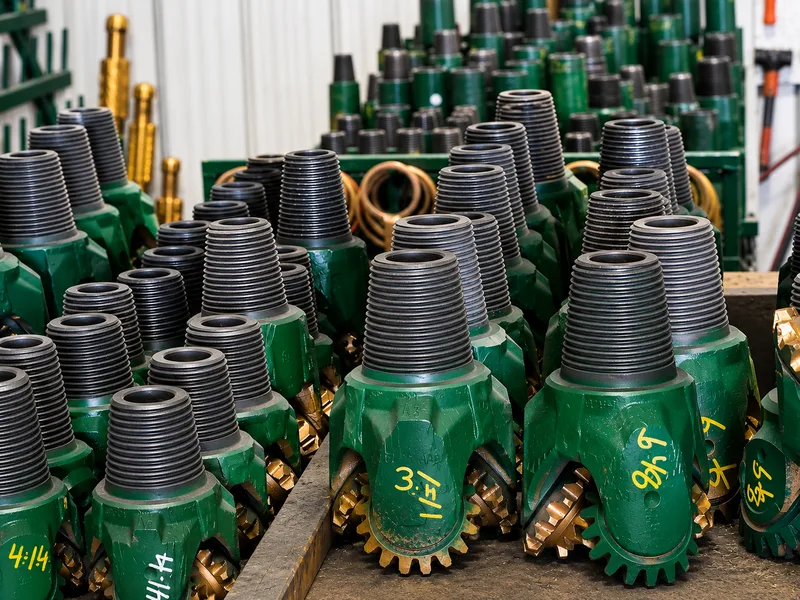

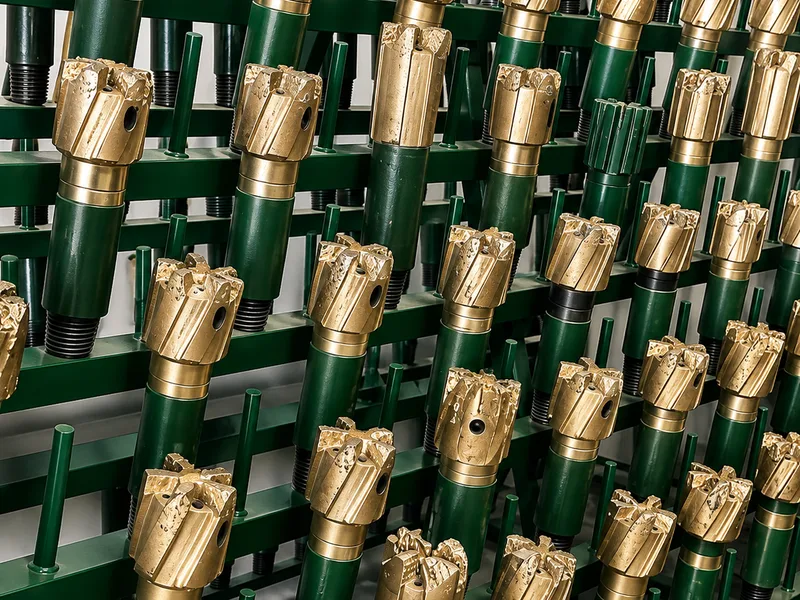

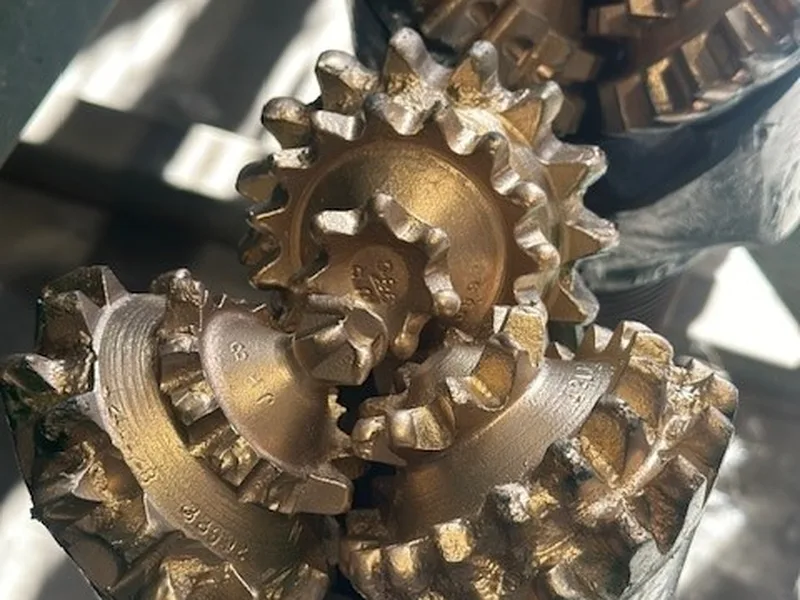

Mill heads and drill bits
A sample of what’s on the racks.
