Bridge Plugs and Cement Retainers
Isolation and squeeze tools for completion and abandonment work.
Packers & completion tools: Completion Shop (250) 785-6102
Retrievable or permanent

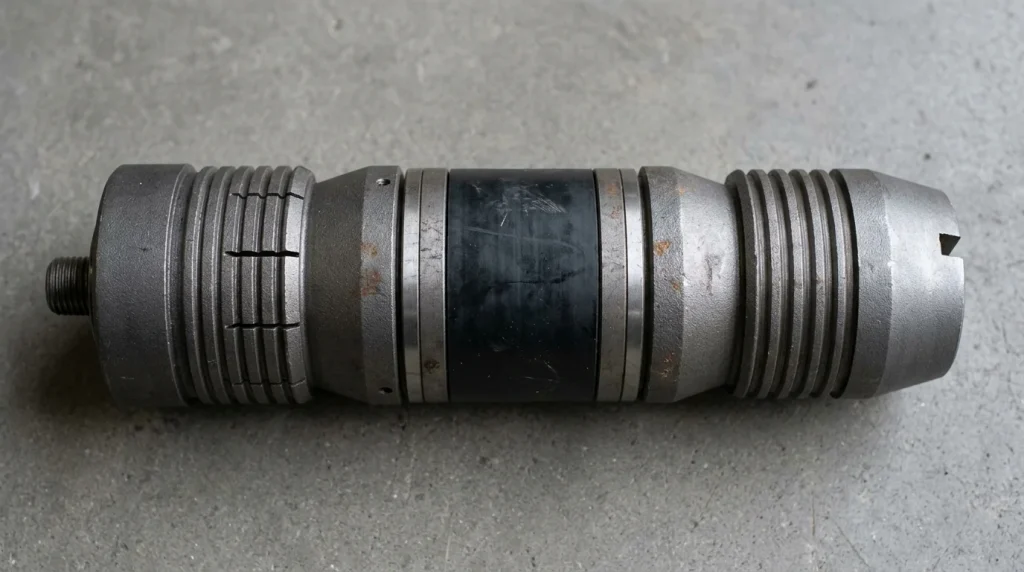

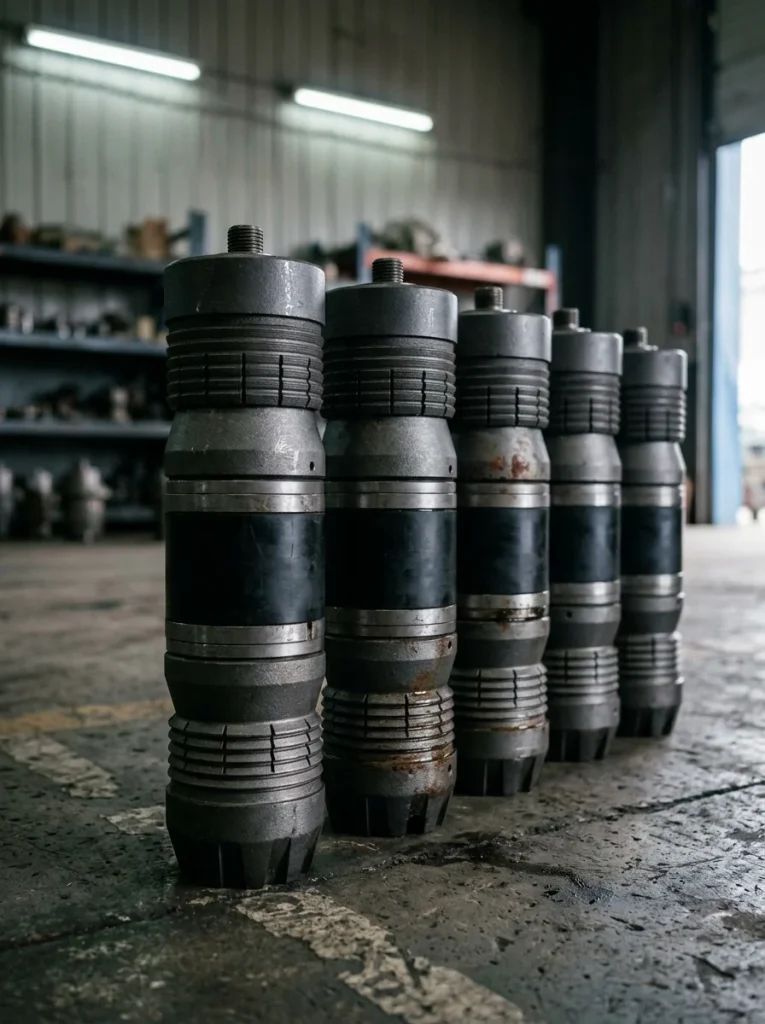

Bridge Plugs
For zonal isolation and abandonment, set on wireline or hydraulically. Hydraulic setting kits for permanent bridge plugs in 4½″, 5½″ and 7″ casing.
- CW Retrievable Bridge Plug
- Permanent Bridge Plug

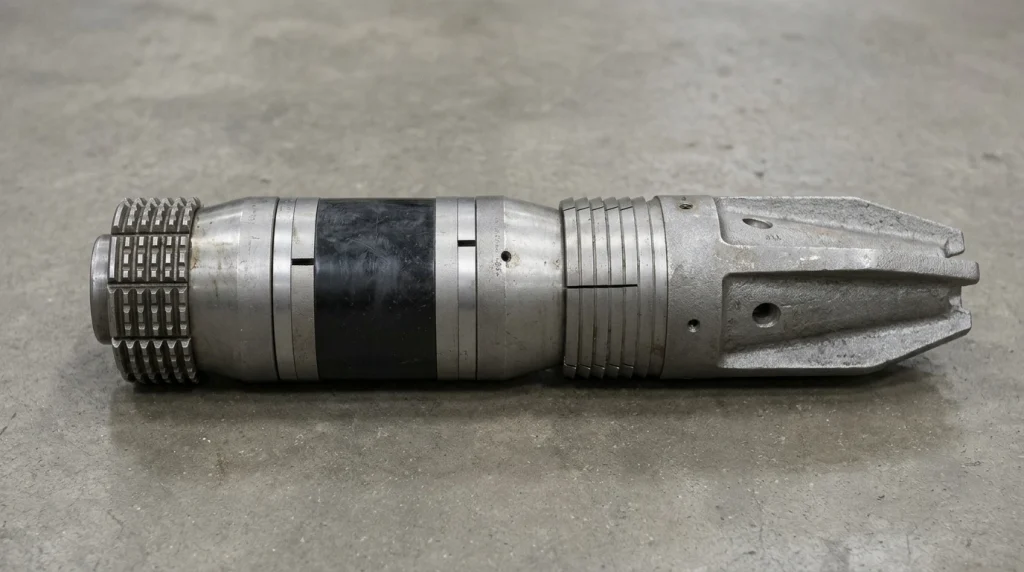

Cement Retainers
For controlled squeeze work where returns have to be held below the tool.
- Cement Retainer
- Permanent Cement Retainer
Bridge Plug Options
| Plug | Type | Size range |
|---|---|---|
| CW Retrievable Tubing Bridge Plug | Retrievable | 60.3 – 88.9 mm |
| CW Retrievable Casing Bridge Plug | Retrievable | 114.3 – 244.5 mm |
| Tubing Permanent Bridge Plug | Permanent | 60.3 – 88.9 mm |
| Casing Permanent Bridge Plug | Permanent | 114.3 – 339.7 mm |
| Permanent Drillable Bridge Plug | Permanent, drillable | 5K or 10K rating |
Built around the abandonment program
Suspension and abandonment work is governed by what the regulator will accept as well as by what holds pressure. That is why plug selection is the first conversation rather than the last — a retrievable plug set for a suspension is a different decision from a permanent drillable plug set for final abandonment.
We carry the setting tools, retainers and cement equipment to go with the plugs, for suspension, abandonment and decommissioning work.
Available Range
| Tool | Set method | Size range |
|---|---|---|
| Cement Retainer | Wireline set | 114.3 – 339.7 mm |
| Cement Retainer | Mechanical set | 114.3 – 339.7 mm |
| Hydraulic Setting Tool | Hydraulic | Matched to retainer |
| Mechanical Setting Tool | Mechanical | Matched to retainer |
One supplier for the whole cementing job
A cement retainer on its own is not much use. The job needs the retainer, the right setting tool, the cement itself and something to mix it with, and when those come from four suppliers, the one that is late is the one that holds up the program.
Dan’s supplies the retainers, the setting tools, Class G cement, mixing equipment and sand line dump bailers with coil tubing options.
Plugs and retainers in the Tools Catalogue
Casing ranges, setting depths and pressure ratings are tabulated in the Tools Catalogue, pages 38 to 48.
Send us the casing program
Include the casing OD, weight and setting depth.
